Description :
Onboard Intel Core 12th/13th generation -U/-P series processor, TDP 28W
2 x DDR5 SO-DIMM, total maximum 64GB;
HDMI, Mini DP; TPM2.0;
M.2 2280 SSD, E-Key, B-Key;
2 x LAN, 4 x COM, 8*GPIO;
DC 9-36V, 120W;
Size:174x129x86 mm
|
Material and color |

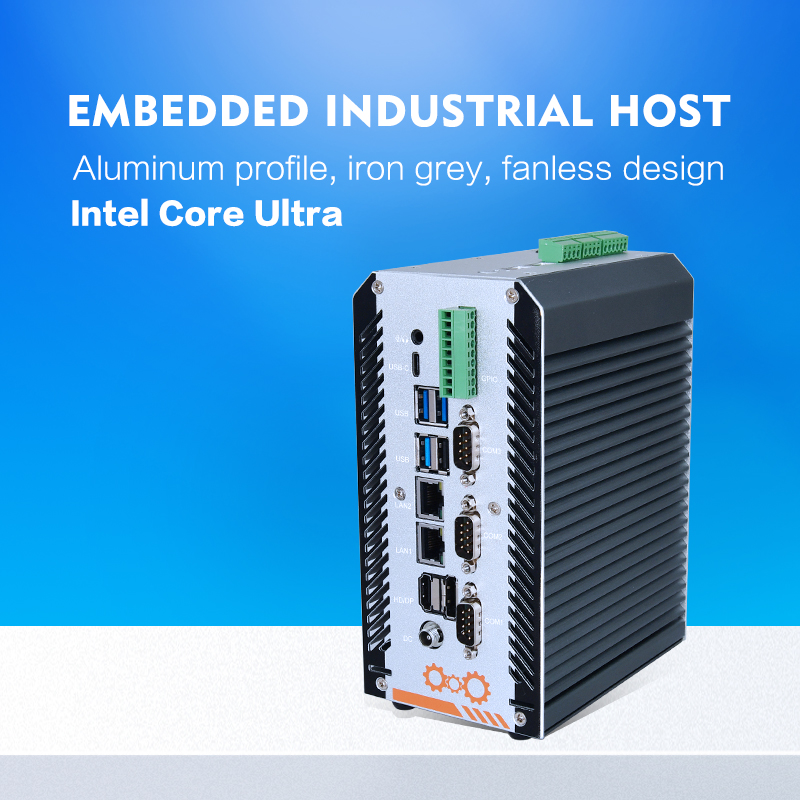

Aluminum profile, iron grey, fanless design |
|
Installation |

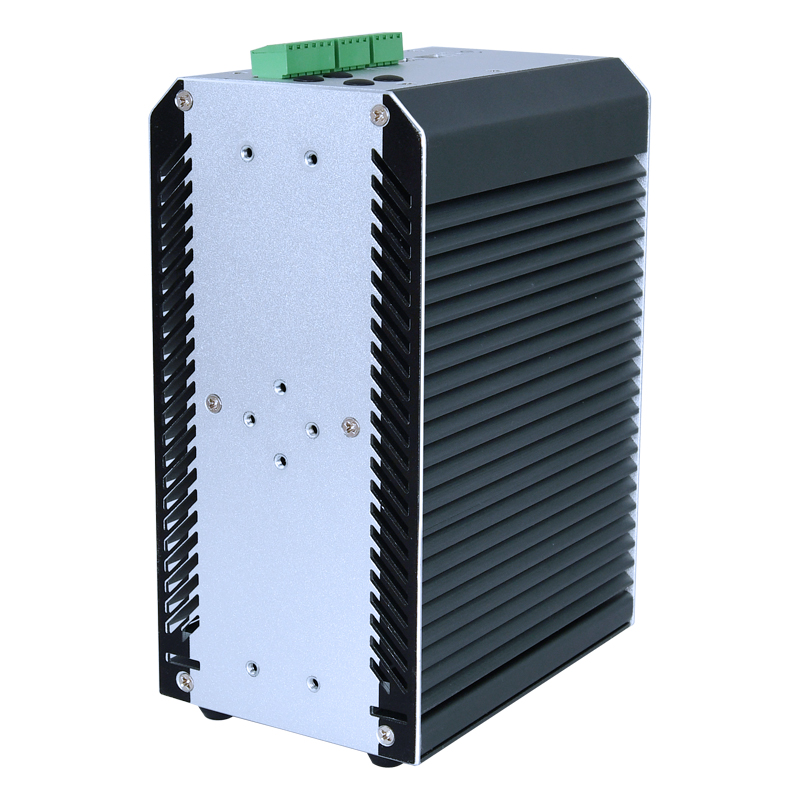

Desktop foot pad type (default), 35mm industrial rail type, wall-mounted |
|
Processor system |
Onboard Intel Core 12th/13th generation -U /-P series processor, TDP 28W |
|
|
UEFI BIOS |
|
Memory |
2 x DDR 5SO-DIMM, total maximum 64GB |
|
Storage |
1 x M.2 M-Key 2280 (PCIe 3.0 x 2 and SATA3.0, hardware option) |
|
Display |
1 x HDMI2.0, 1 x Mini DP, 1 x Type-C (DP+USB3.0) |
|

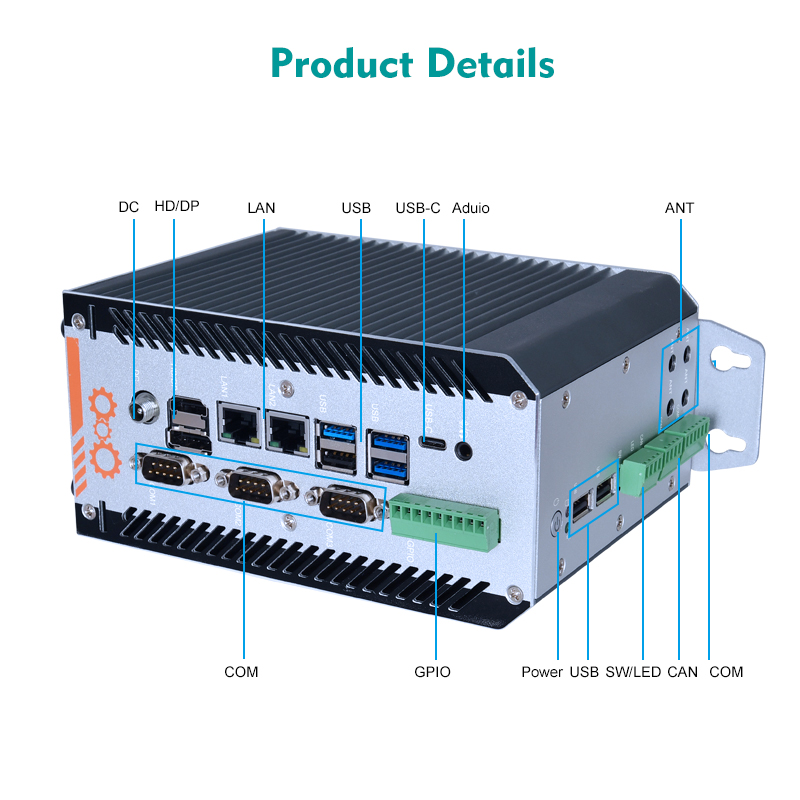

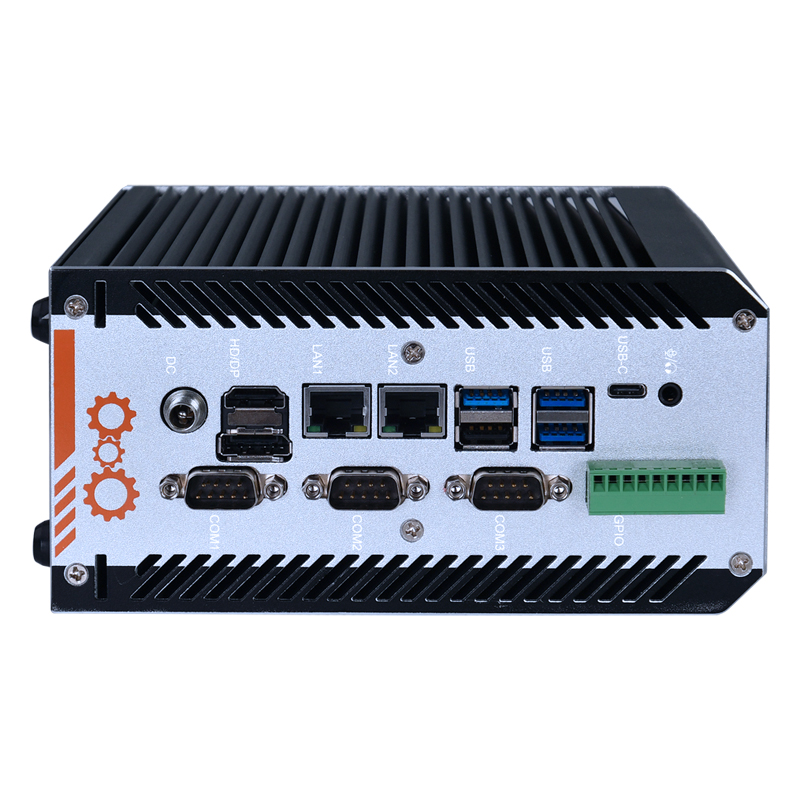

Chassis I/O interface |
DC Phoenix terminal, 2 x LAN, 1 x HDMI, 1 x Mini DP, 1 x Type-C |
|
|
7 x USB, 1 x DB9 RS422/485 (COM3, BIOS), 3 x DB9 RS232 (COM1/2/4) |
|
|
Switch button, 4 x ANT holes, 8bit GPIO, 1 x Audio two-in-one |
|
Expansion interface/function |
External TPM2.0 optional |
|
|
1 x E-Key (PCIe+USB2.0, WIFI/BT) |
|
|
1 x B-Key (USB3.0 +USB2.0, 4G/5G) |
|
Power Supply |
DC 9-36V, 120W |
|
Working Environment |
Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90% |
|
|
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% |
|
Operating System |
Windows 10, Windows 11, Linux |
|
Size |
174x129x86 mm (without bracket) |
|
Gross Weight |
About 4Kg |
