Processor system

Onboard Intel Elkhart Lake series processor

EFI BIOS

Memory

2 DDR4 SO-DIMMs, maximum 32GB

storage

One M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol) storage interface

1 SATA3.0 interface, 2Pin power supply

display

1 HDMI2.0 interface, supporting 4096x2160@60Hz

1 DP1.4 interface, supporting 4096x2160@60Hz

LVDS/eDP

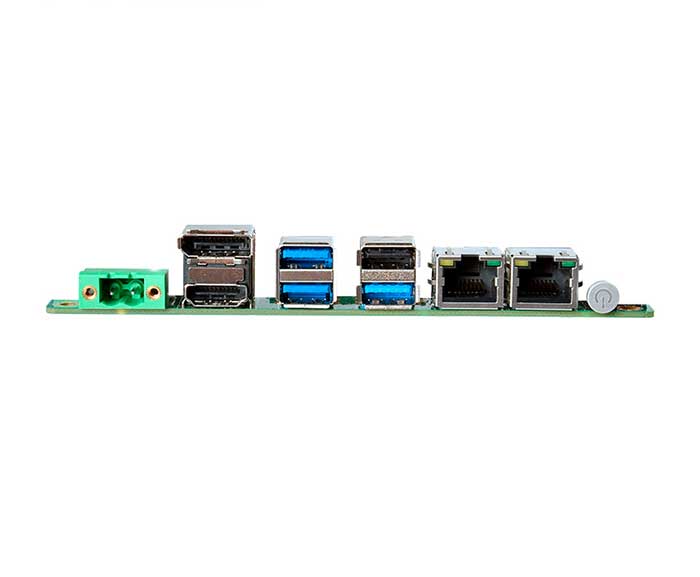

Board side I/O interface

2Pin through-wall terminal, HDMI, DP, power-on button

4 USB, 2 RJ45. (6 USB for single network)

Expansion interface/function

TPM2.0 is optional, but not by default

One M.2 E-Key (PCIe+USB2.0 protocol, supporting WIFI module)

\

One M.2 B-Key (USB2.0/USB3.0 protocol, supporting 4G/5G module); 1 Micro SIM card slot

6 COM row pins, 2x5Pin, spacing 2.0mm

2 sets of 4 USB2.0 rows of pins, 2x5Pin, spacing 2.0mm

1 set of 8-bit GPIO pin, 2x5Pin, spacing 2.0mm

1*3Pin SYS FAN，1*3Pin CPU FAN

Power Supply

DC 9-36V，30W

work environment

Working temperature: - 20 ℃~+60 ℃; Working humidity: 5%~90%

Storage temperature: - 40 ℃~+85 ℃; Storage humidity: 5%~90%

Operating system support

Windows10，Windows11，Linux

size

146x102mm

Net weight

About 120g without radiator, about 200g with radiator
