?Model

OPS116U

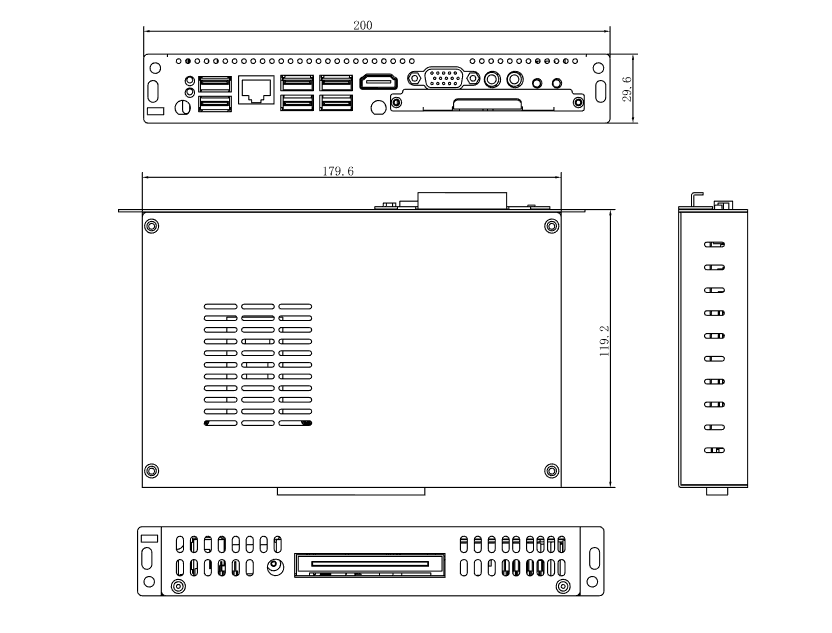

size

180*120*30 mm

Processor

3855U/3865U（Celeron 1.6-1.8GHz）

3955U/3965U （Celeron 2.0-2.2GHz）

I3-6100u (Core 2.3ghz)

I3-7100u (Core 2.4ghz)

I5-6200u (Core 2.3ghz)

I5-7200u (Core 2.5gh-3.1ghz)

I7-6500u (Core 2.5gh-3.1ghz)

I7-7500u (Core 2.7gh-3.5ghz)

chipset

Intel single chipset

Ram socket

1*DDR4?SODIMM 260?Socket,max to be 32GB Ram

Hard disk

32GB 64G/128G /256 SSD(NGFF)
500G/1TB HDD

Display interface

VGA and HDMI

Internet

onboard?1*?Gigabit Lan Port

audio

Onboard ?HDA ALC662

Whole machine key

Whole machine key

Wifi

1*NGFF?Port（KEY E）

1*NGFF port , support 3G/4G Module

storage

1*MINISATA ?support SSD; 1*SATA3.0 1*SATA_HDD

color

Black

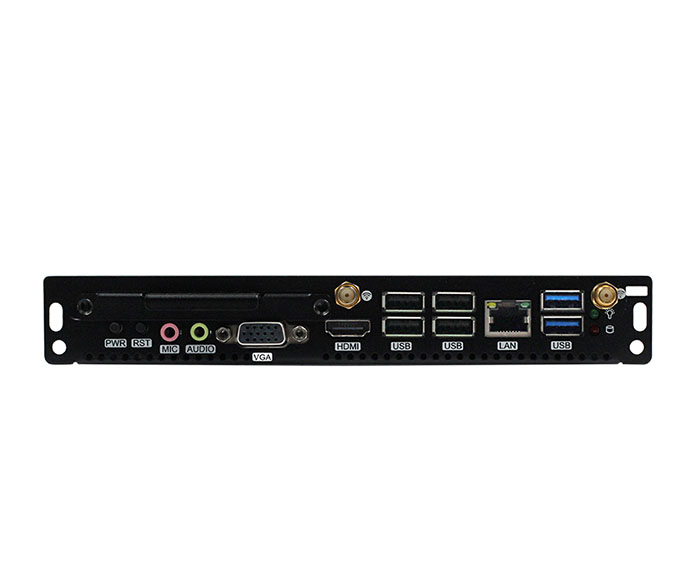

Panel interface

1*LAN ?1*HDMI ?1*VGA ?1*DC ?1*MIC-IN ?1*LINE-OUT

2*USB3.0 2*USB2.0 ?2*WIFI antenna interface

1*switch button

1*reset button

1*hard disk indicator

1*power indicator

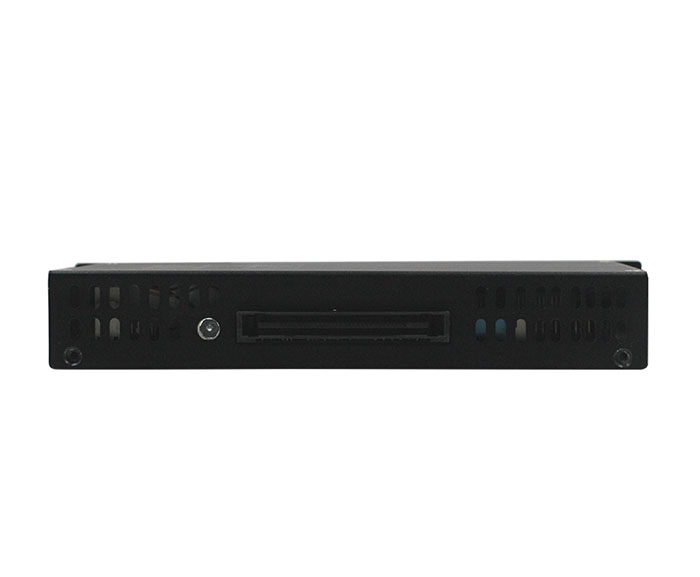

OPS straight card interface

1*LINE-OUT 1*HDMI

1*DP (pick one from two )

1*DC

3*USB ?1 switch button

Standard

1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna

Operate system

Windows8.1 Windows 10 Linux
