CPU

Integrated Intel Gemini Lake/Gemini Lake-R series CPU

EFI BIOS

Memory

1*DDR4 SO-DIMM，max support 8GB

Display

1*VGA，Support Resolution 1920x1200

1*HDMI2.0，Support Resolution 4096x2304@60HZ，Support 4K display

HDMI+VGA Synchronous or asynchronous display

Storage

1*SATA3

1*mSATA

Onboard eMMC,32GB/64GB/128GB optional

Lan port

2*Intel i225V 2.5G lan card

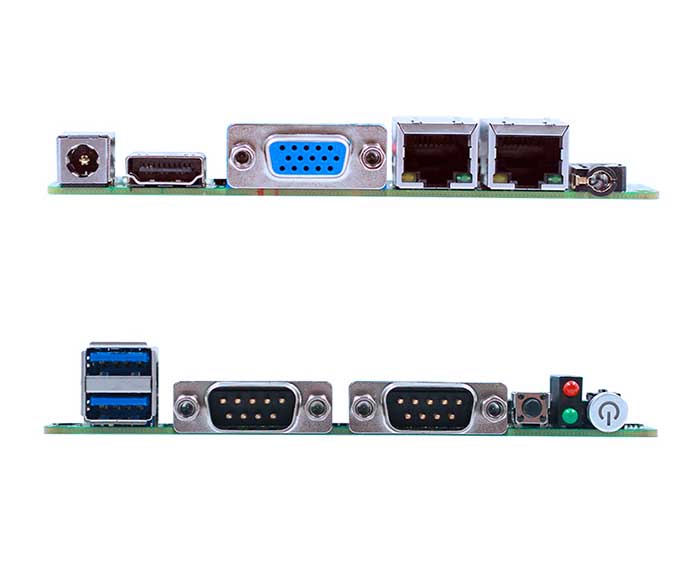

I/O port

1*VGA，1*HDMI2.0

2*RJ45

2*USB3.0

2*DB9 RS232

1*DC JACK

expansion interface/function

0-255 seconds, watchdog routine provided

Aluminum fanless radiator (mainboard reserved fan interface can support automatic and manual fan speed adjustment)

4*USB2.0 pin header，2x5Pin，space 2.0mm

6*COM port（4*RS232，2*RS232/RS485 optional），RS485 Supports automatic flow direction control

8 bit GPIO，，2x5Pin，Space 2.0mm

1個MiniPCIe socket，Support PCIe and USB2.0 device

Power supply

DC12-19V

Environment

Working temperature：-20℃ ~ +60℃；Working humidity:0% ~ 90% (non-condensing)

Storage temperature：-40℃ ~ +85℃；Storage humidity:0% ~ 90% (non-condensing)

OS

Windows10，Linux

Dimension

120x120mm

Weight

With heatsink 260g，without heatsink 130g
