◆ Using Baytrail-D/I/M series processors;
◆ J1900\J1800\N2806\N2900;
◆ Integrated 2GB/4GB DDR3L memory;
◆ Onboard 16/32/64G EMMC (optional)
◆ Provide 1*VGA, 1*HDMI;
◆ Support power-on automatic power-on function, jumper selection;
◆ Single input DC power supply, DC12V;
◆ Structure 197*197*33mm;
Specifications:
Model
|
H-BOX-U3
|
Size
|
197*197*33mm
|
processor
|
Support Baytrail-I/D/M series processors (J1900 N2900 J1800 N2806)
|
Chipset
|
Support Baytrail-I/D/M series processors
|
memory
|
Onboard 2GB/4GB DDR3 memory
|
Extension slot
|
1 DDR3 SODIMM 204 Socket?Maximum to 8G
|
network card
|
onboard 1 Gigabit NIC
|
audio
|
Onboard HDA ALC662
|
storage device
|
1 *MINISATA supports SSDand 1*SATA2 (choose one); 1*SATA1 and 1*SATA_HDD (choose one), 1*16/32/64G EMMC (optional)
|
color
|
Silver
|

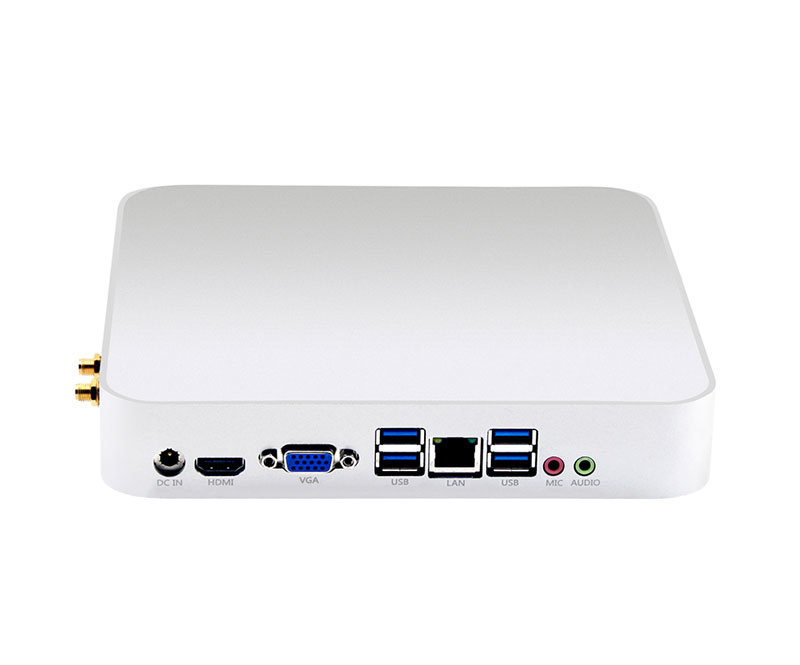

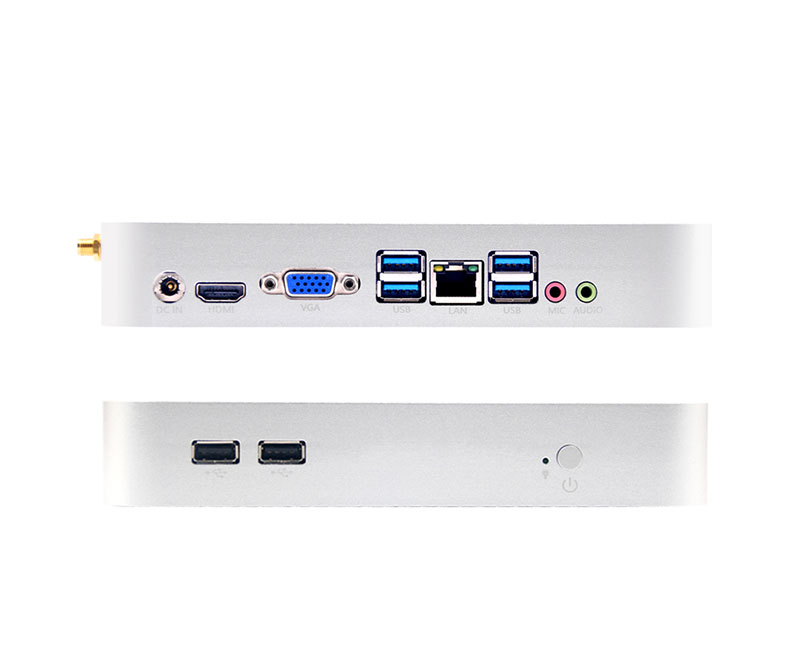

panel interface
|
1*LAN ?1*HDMI ?1* VGA ??1*DC ?1*MIC-IN ?1*LINE-OUT ??1*USB3.0 1*USB2.0??2*WIFI antenna interface< /span>
|
backplane interface
|
1 switch button?2*USB2.0
|
Standard
|
1*12V 60W Power Adapter?2*WIFI Antenna
|

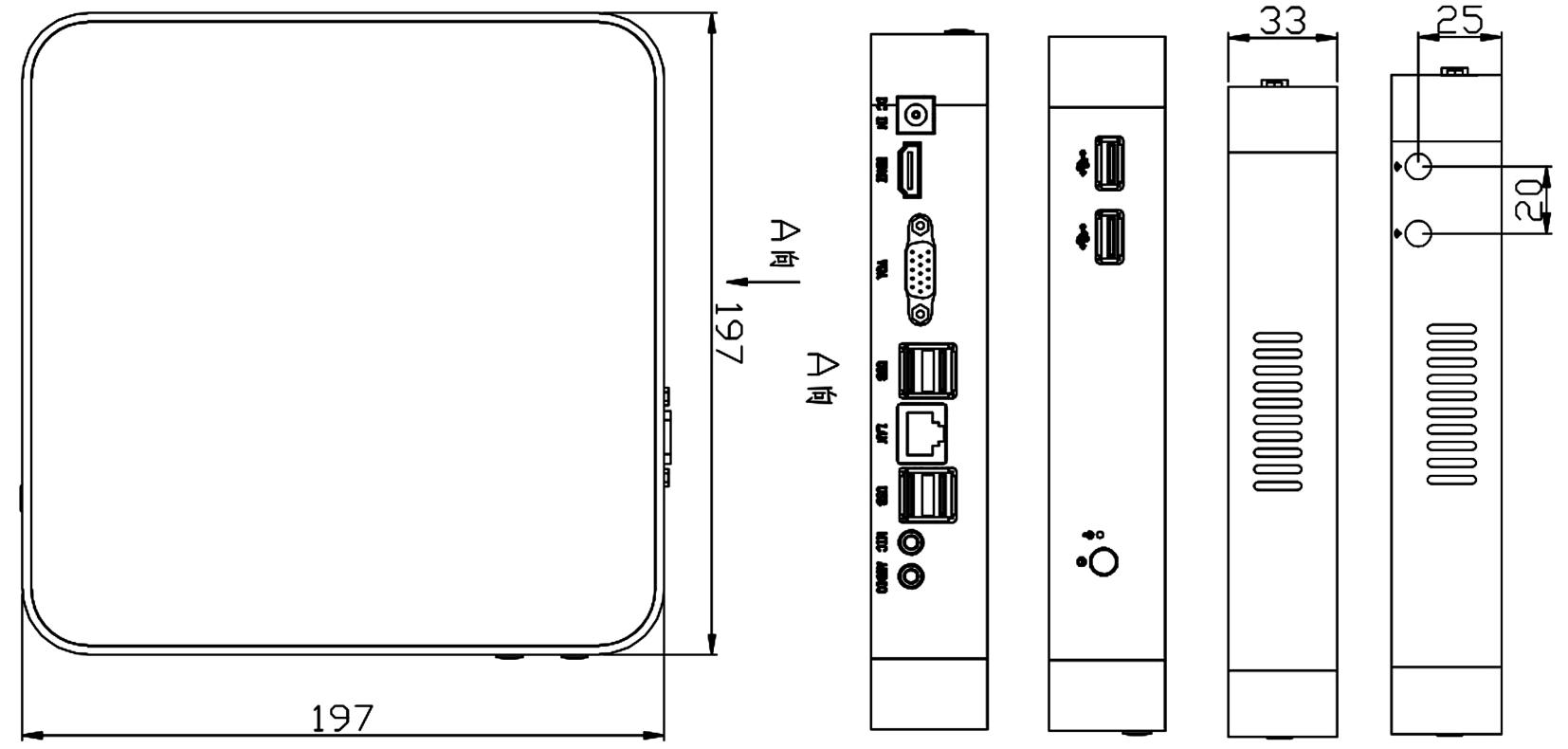

Size:
Ordering Information:
|
model
|
Description
|
CPU optional
|
|
H-BOX-U3
|
Intel Baytrail series (J1900/N2806/N2900/J1800)
Integrated 2GB/4GB?DDR3L memory
Onboard 16/32/64G EMMC (optional)?
|
J1900/N2806/
N2900/J1800
|
?
Packing list:
Optional Accessories:
|
product name
|
Specifications
|
|
|
Inline USB cable
|
Length 32CM, one for 2*USB port
|
Wire can be customized according to customer requirements
|
|
Internal Serial Cable
|
Length 32CM is solid and solid
|
|
Inline VGA cable
|
Length 36CM, 2.54 pitch pin header
|
|
Inline LPT Line
|
Long 30CM, 2.54 pitch pin header
|
Note:SSD electronic disk, memory, adapter power, wireless WIFI module, chassis and other accessories can be specifically consulted salesman
